Y-Type Globe Valve Manufacturers in India

Y-Type Globe Valves Suppliers & Repairs in Mumbai, India

Y Type Globe Valves are an essential part of the modern industrial infrastructure. Manufactured from high grade materials, these versatile valves offer a wide range of applications and provide excellent performance in water and process control systems. Their robust construction ensures extended service life as well as reduced maintenance costs. These globe valves feature fully enclosed ball-type shut off devices that make them reliable for use in extreme conditions with heavy duty operating loads. A Y type configuration provides full tight shutoff with minimal torque so they can be used to effectively regulate flow even during rapidly changing pressure conditions or low visibility environments where other designs may not work optimally. Highly corrosive media such as sulfuric acid or solvents can be handled without any risk due to their stainless steel body material options, while semi-lugged ends ensure easy installation into existing pipelines with little disruption during switching operations. This affordable solution is suitable for both industrial and commercial installations.

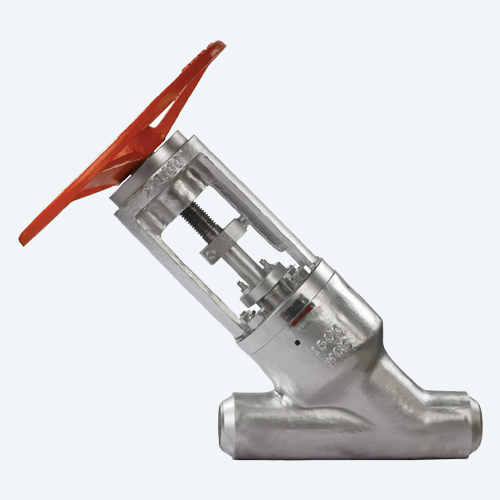

Y Type Globe Valves

Y-Type Globe Valve 900# class, 1500# class, 2500# class

Used In

Chemical Process

Petrochemical Plants

Power Generation Sectors

Temparature of Media

Normal Temperature

High Temperature

Low Temperature

Medium Temperature

Body materials

Overview of available materials

Material Temperature limit
[°C] [°F]
ASTM A216 WCB ≤ 425 ≤ 800
ASTM A216 WCC ≤ 425 ≤ 800
ASTM A217 WC6 ≤ 593 ≤ 1100
ASTM A217 WC9 ≤ 593 ≤ 1100
ASTM A217 C12A ≤ 650 ≤ 1200

Dimensions and weights

Class NPS C4)5) ØD E ØG6) [kg]5)
900 2 490 254 368 49,5 40
3 600 457 381 73,5 75
4 685 610 457 92,0 105
5 685 610 457 116,0 110
6 925 610 610 139,5 230
8 1090 610 737 182,5 380
1500 2 565 457 368 43,0 75
3 630 610 470 66,5 95
4 765 610 546 87,5 170
5 765 610 546 109,5 185
6 1025 610 705 131,5 380
2500 2 560 457 451 38,0 85
3 675 610 578 58,5 145
4 765 610 673 80,0 210
5 765 610 673 103,5 235
6 1030 610 914 124,5 485
