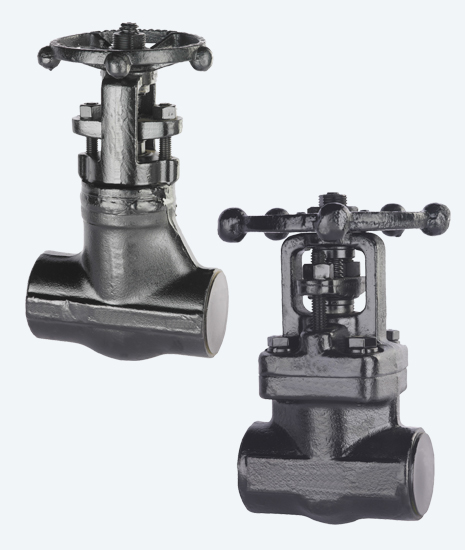

A forged gate valve is a class of industrial valve used to control the flow of fluid or gas through a pipeline. The valve is created by forging solid pieces of steel, resulting in a robust and durable valve that can tolerate high pressures and temperatures. We are specialize manufacturers, exporters, suppliers, & repairs of forged gate valve based in Mumbai.
Elite Valves, we offer a comprehensive range of Forged Gate Valves, Forged Globe Valve, Forged NRV Valve. Our offered forged gate valves are commonly used in high-pressure and high-temperature applications because of their strength and durability. This type of valve is ideal for use in applications including oil and gas pipelines, water lines and other related industries where pressure containment is essential. The valves are manufactured to the highest quality standards using a special forging process which ensures strength, durability and reliability. They feature resilient seating technology that increases sealing ability even at higher pressures or temperatures when compared to standard valves.
Our forged gate valve range has been designed to meet the highest standards, with a solid construction rated for pressurized environments that meets international standards of safety. The materials used are corrosion-resistant, easy to maintain, and ensure an even flow of liquids or gases without restriction. This makes them ideal for use in chemical processing plants, industrial production lines, and firefighting systems, among other uses. We also offer custom solutions for applications with specific requirements, such as high pressure ratings or extreme temperatures, which require special design features or material selection. Finally, our top-class service team can provide expert advice on installation.
| Size mm (inch) | A | ∅B | GATE | GLOBE | CHECK | GATE | GLOBE | CHECK | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C (Open) | (Wt 1) | |||||||||||||||
| FB | RB | FB | RB | FB | RB | FB | RB | FB | RB | FB | RB | FB | RB | FB | RB | |
| 8 | 73 | 73 | 6 | 6 | 116 | 116 | 125 | 125 | 54 | 54 | 2.3 | 2.3 | 2.4 | 2.4 | 1.5 | 1.5 |
| ¼ | (2.9) | (2.9) | (0.24) | (0.24) | (4.6) | (4.6) | (4.9) | (4.9) | (2.1) | (2.1) | (5.1) | (5.1) | (5.3) | (5.3) | (3.3) | (3.3) |
| 10 | 73 | 73 | 9 | 6 | 116 | 116 | 125 | 125 | 54 | 54 | 2.3 | 2.3 | 2.3 | 2.4 | 1.5 | 1.5 |
| (3/8) | (2.9) | (2.9) | (0.35) | (0.24) | (4.6) | (4.6) | (4.9) | (4.9) | (2.1) | (2.1) | (5.1) | (5.1) | (5.1) | (5.3) | (3.3) | (3.3) |
| 15 | 82 | 73 | 12 | 9 | 132 | 116 | 142 | 125 | 65 | 54 | 2.5 | 2.2 | 2.7 | 2.3 | 2.0 | 1.5 |
| ½ | (3.2) | (2.9) | (0.47) | (0.35) | (5.2) | (4.6) | (5.6) | (4.95) | (2.6) | (2.1) | (5.5) | (4.9) | (6.0) | (5.1) | (4.4) | (3.3) |
| 20 | 106 | 82 | 17 | 12 | 154 | 132 | 163 | 142 | 73 | 65 | 3.3 | 2.5 | 3.5 | 2.7 | 2.5 | 2.0 |
| ¾ | (4.2) | (3.2) | (0.67) | (0.47) | (6.1) | (5.2) | (6.4) | (5.6) | (2.9) | (2.6) | (7.3) | (5.5) | (7.7) | (6.0) | (5.5) | (4.4) |
| 25 | 140 | 106 | 22 | 17 | 200 | 154 | 210 | 163 | 102 | 73 | 7.4 | 3.3 | 8.0 | 3.5 | 6.1 | 2.5 |
| (1) | (5.5) | (4.2) | (0.87) | (0.67) | (7.9) | (6.1) | (8.3) | (6.4) | (4.0) | (2.9) | (16.3) | (7.3) | (17.6) | (7.7) | (13.4) | (5.5) |
| 40 | 148 | 140 | 35 | 28 | 234 | 234 | 234 | 210 | 125 | 102 | 9.5 | 7.6 | 10.0 | 8.0 | 8.5 | 2.5 |
| 1½ | (5.8) | (5.5) | (1.38) | (1.10) | (9.2) | (7.9) | (10.0) | (8.3) | (4.9) | (4.0) | (20.9) | (16.8) | (22.0) | (17.6) | (18.7) | (13.4) |
| 50 | - | 148 | - | 36 | - | 234 | - | 257 | - | 125 | - | 9.5 | - | 10.0 | - | 8.5 |
| (2) | - | (5.8) | - | (1.42) | - | (9.2) | - | (10.1) | - | (4.9) | - | (20.9) | - | (22.0) | - | (18.7) |
