Ball Float Steam Traps Manufacturers in India

ball float steam trap

Ball Float Steam Traps Manufacturers, Suppliers And Exporters in Mumbai

Ball Float Steam Traps Manufacturers, Suppliers And Exporters In Mumbai, India. Elite Valves stands out as a prominent name in the industry. They are renowned as manufacturers, suppliers, exporters, and repair service providers of top-notch ball-float steam traps. These components are widely used in various sectors, including power generation, steam heating systems, oil and gas industries, chemical processing, and the food and beverage industry. The use of ball-float steam traps substantially helps to maintain efficiency and safety requirements. Furthermore, Elite Valves is also authorized as a manufacturer, supplier, and exporter based in Mumbai, India, confirming their global presence and contribution to these critical industrial solutions.

Description

Suppliers And Traders Of The Following Products In India

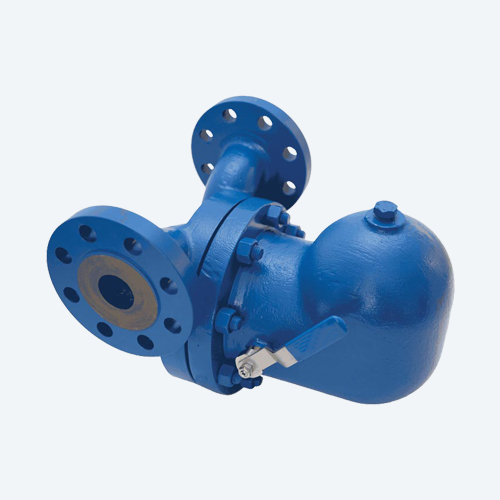

The ball float steam traps is an essential component of many industrial processes and critical to the safe operation of process systems. This product's have basic design makes it simple and easy to install even with minimal expertise or experience; it takes up less room than bigger alternatives, making it ideal for smaller plants or confined areas where floor height limits may limit possibilities. Float traps are designed for low- and medium-pressure steam heating and industrial equipment. Both low- and high condensate loads may be efficiently handled.

We offer a wide range of industrial products. Ball Valve , Ball Float Steam Traps, Butterfly Valve, Dual Plate Wafer Type, Forged Steel Valve, Forged NRV Valve, Gate Valve, Globe Valve, High Pressure Gate Valves, etc. For more information, Contact Us Today .

Features
  • Low maintenance
  • High-temperature and high-pressure capabilities
  • High Efficient
  • Easy installation

Limiting Conditions

PMA Maximum allowable pressure 13 bar g at 220 °C
TMA Maximum allowable temperature 220 °C at 13 bar g
PMO Maximum operating pressure 13 bar g
TMO Maximum operating temperature 220 °C at 13 bar g
Minimum operating temperature 0 °C
APMX Maximum differential pressure
SOFT31-4.5 4.5 bar g
SOFT31-10 10 bar g
SOFT31-13 13 bar g
Cold hydraulic test pressure 26 bar g

Material

Sr.No Part Material Standard
1. Cover Cast Iron IS 210 FG 260
2. Cover bolts. Carbon Steel H.T.IS1367, Gr8
3. Cover gasket Asbestos free synthetic fibre -
4. Base Cast Iron IS 210 FG 260
5. Main valve seat Stainless Steel Type 304 ASTM A743 Gr. CA40
6. Main valve seat gasket
7. Main valve assembly screws Stainless Steel Type 304 IS-1364
8. Ball float & lever Stainless Steel Type 304 ASTM A240
9. Air vent element Stainless Steel Type 316 ASTM A240
10. SLR unit Stainless Steel Type 410 ASTM A276
11. SLR unit gasket Stainless Steel Type 304 ASTM A240
12. Pivot frame type 304 Stainless Steel ASTM A240
13. SLR Seal Graphite -
